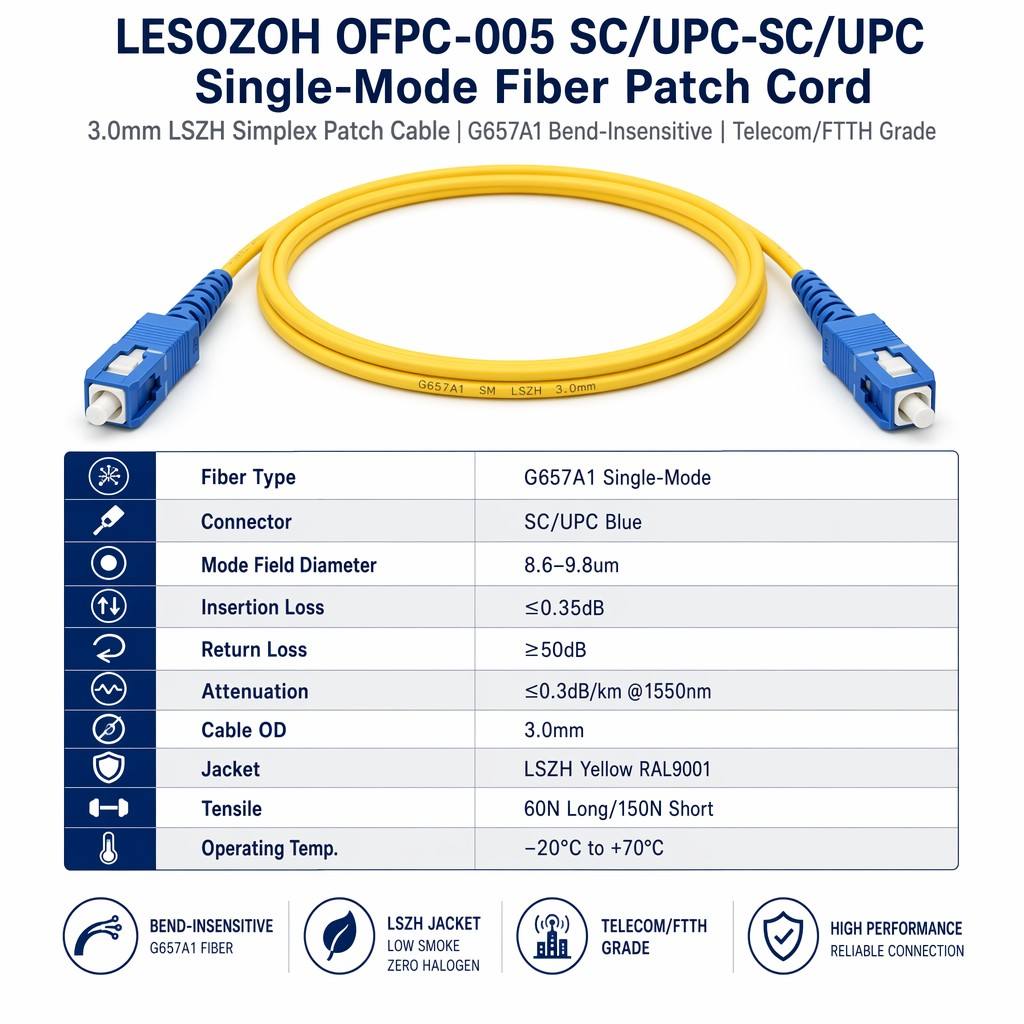

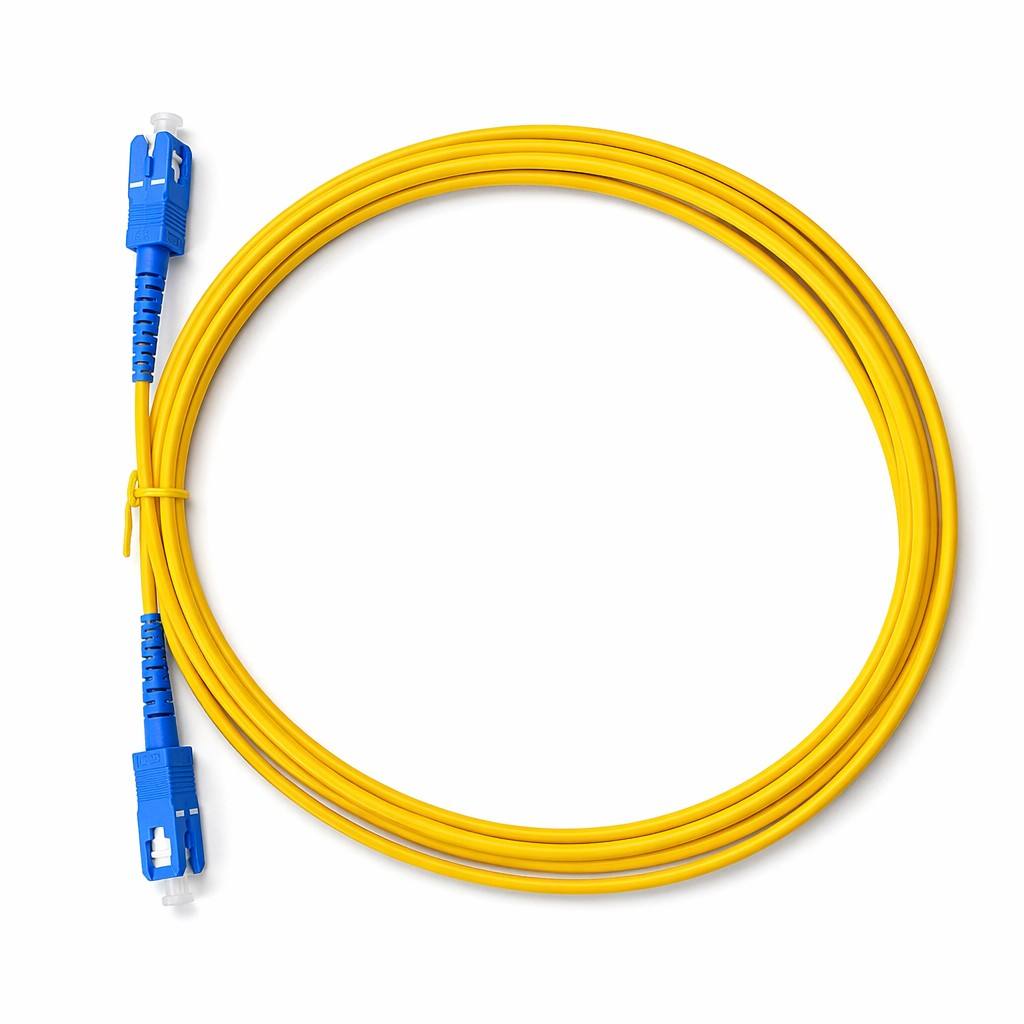

专业级单模光纤跳线，采用SC/UPC连接器和G657A1弯曲不敏感光纤。它采用坚固的3.0mm LSZH黄色护套和进口800D芳纶纱，为FTTH、数据中心和电信基础设施应用提供可靠、低损耗的光传输。
SC/UPC 蓝色标准接头：推拉式锁紧，即插即用，连接可靠
3.0mm 外径：坚固耐用，适合跳线架、ODF 配线架使用
9/125μm 标准单模纤芯：MFD 8.6-9.8μm，兼容所有标准单模设备
-20°C ~ +70°C 宽温工作：通过 70°C 高温和 -20°C 低温 24 小时存储测试
5KG 吊重测试通过：SR 防脱设计，接头牢固不脱落
100% 出厂全检：每根跳线均经过 IL/RL 测试 + 端面检测
OEM & ODM 可定制：长度、颜色、接头类型、包装均可定制
Selling Points:
1.G657A1 Bend-Insensitive
2.Ultra-Low Insertion Loss
3.LSZH Flame-Retardant Jacket
4.High Tensile Strength

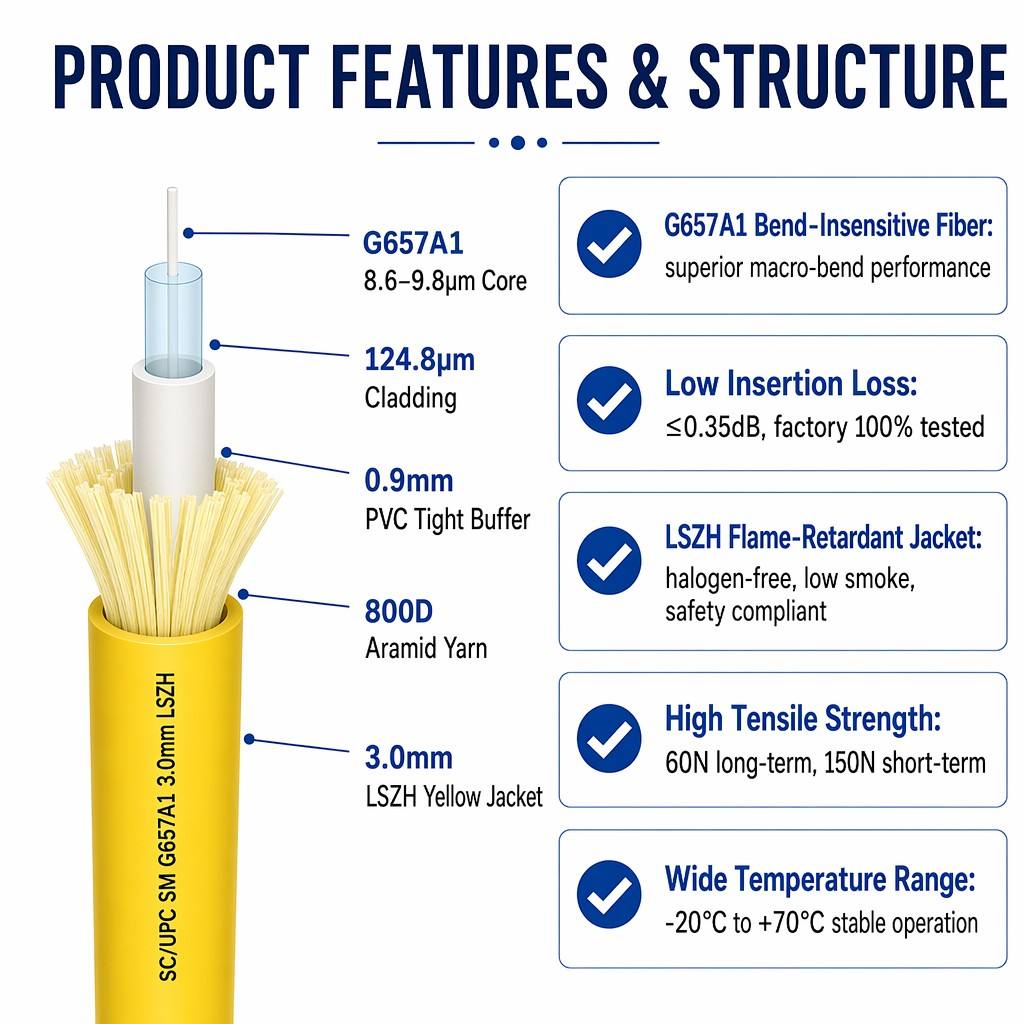

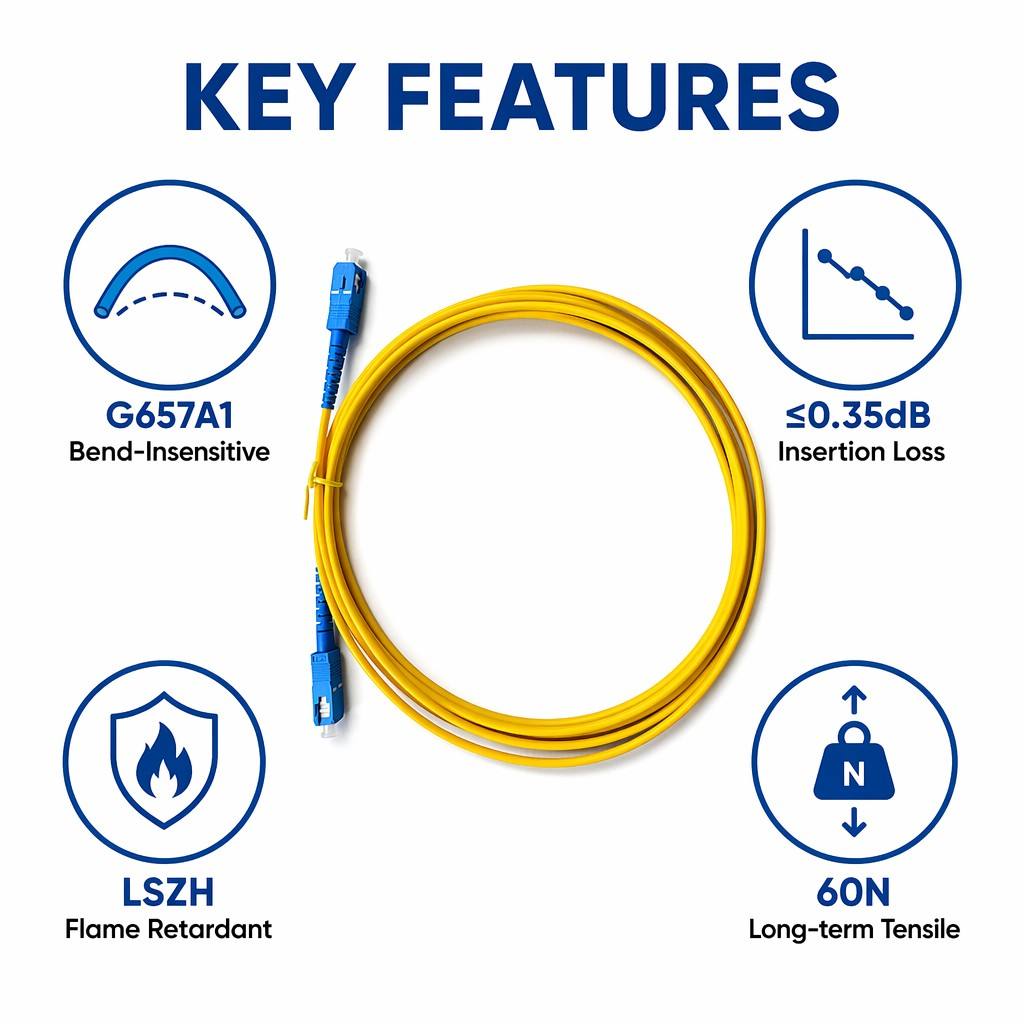

Key Features:
G657A1 Bend-Insensitive Fiber — Superior macro-bend performance, ideal for tight routing in ODF panels and fiber management trays.
Ultra-Low Insertion Loss — ≤0.35 dB IL, 100% factory tested on every unit before shipment.

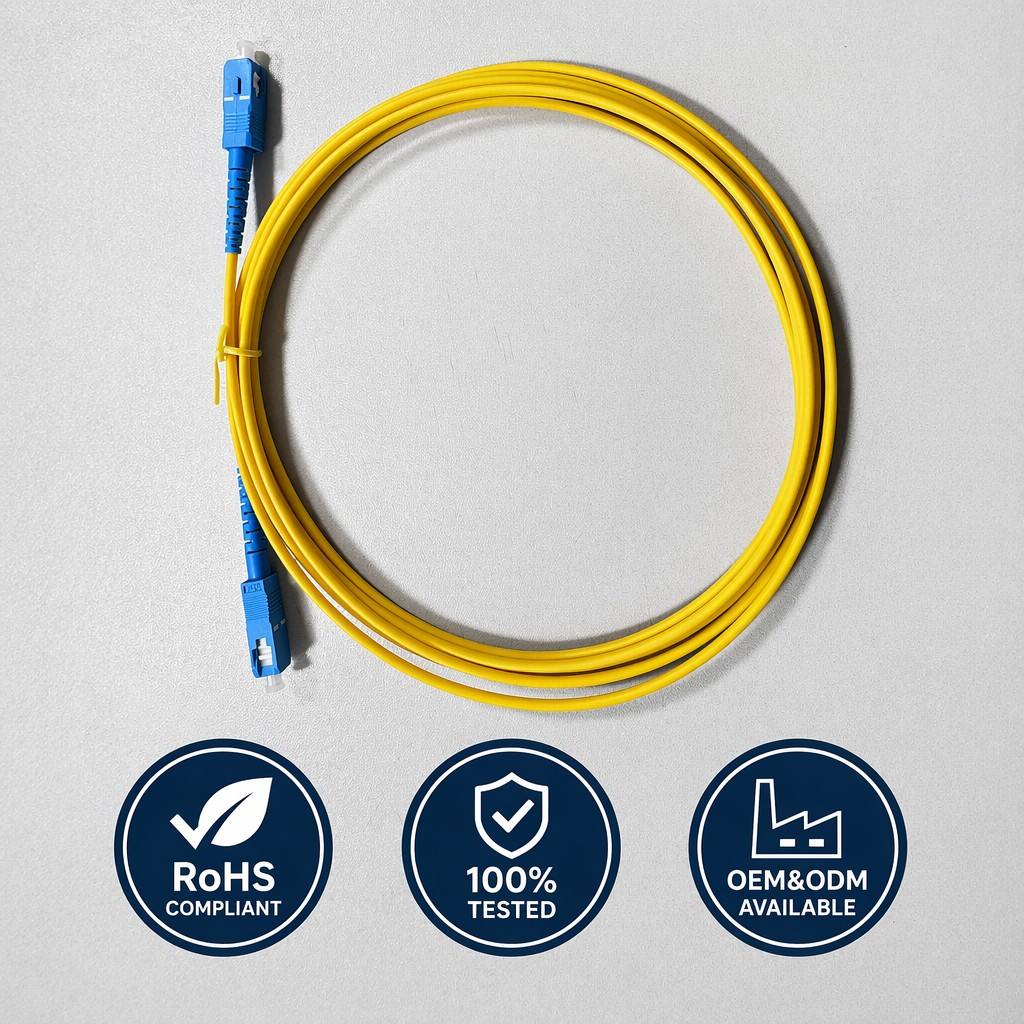

LSZH Flame-Retardant Jacket — Halogen-free, low-smoke, zero-halogen yellow jacket (RAL9001), RoHS 2.0 compliant for safety-critical installations.

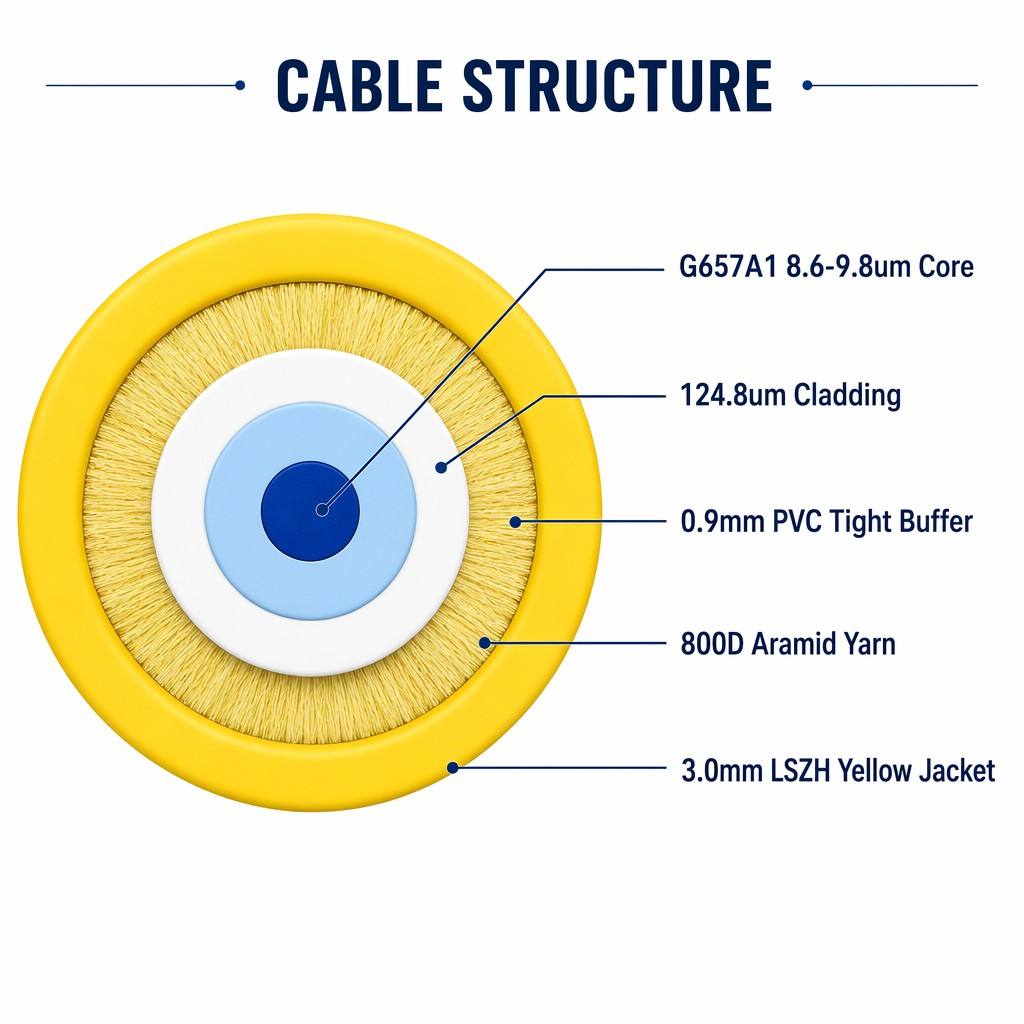

High Tensile Strength — 60N long-term / 150N short-term, reinforced with imported 800D aramid yarn strength member.
Wide Temperature Range — Stable operation from -20°C to +70°C, passes 24-hour high/low temperature storage tests.

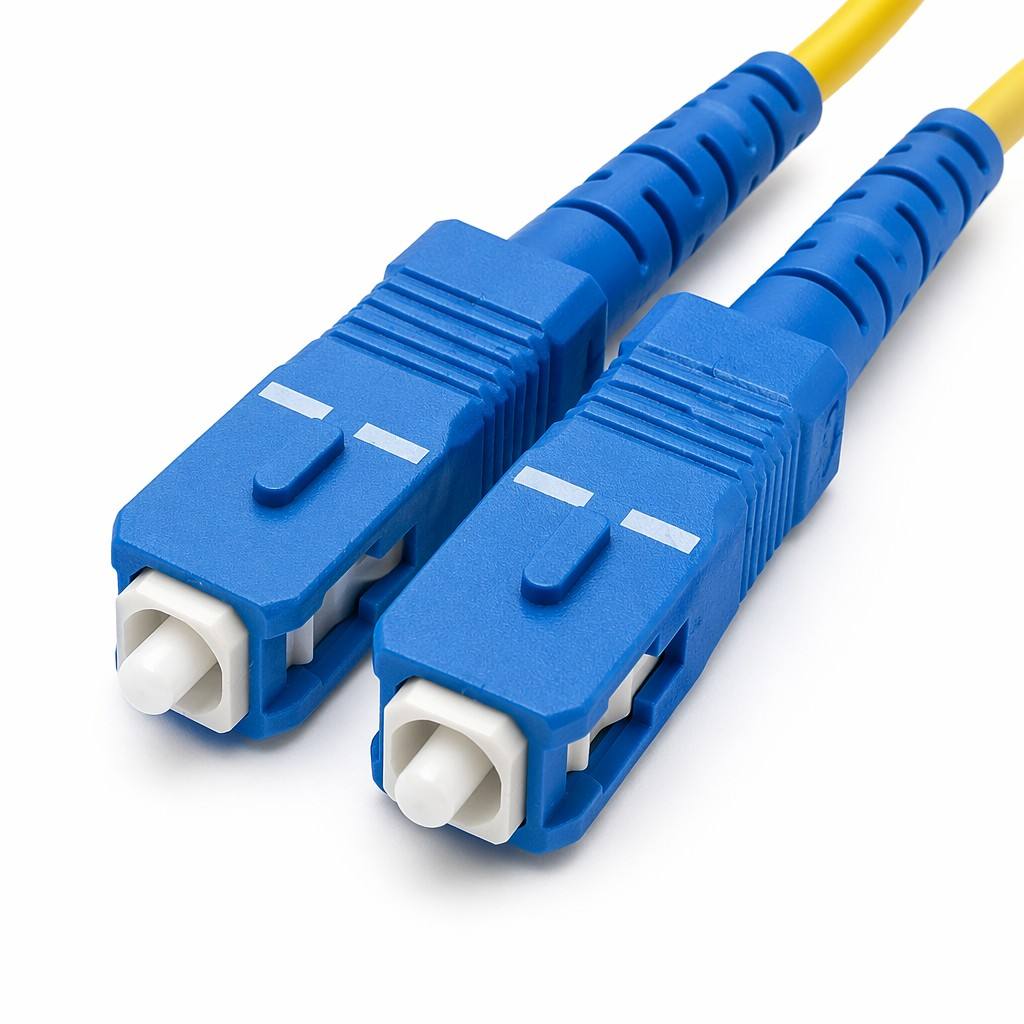

SC/UPC Blue Connectors — Standard push-pull latching, compatible with all SC/UPC adapters and ODF panels.

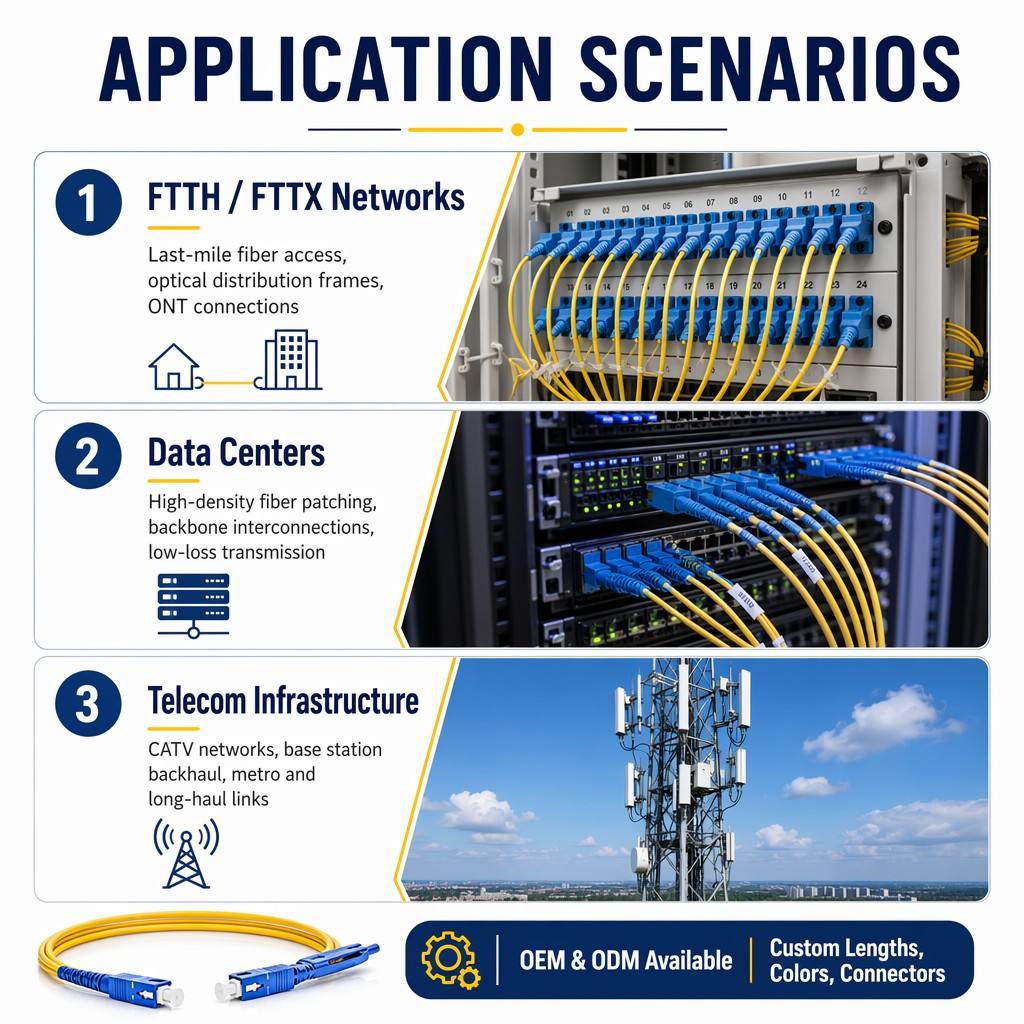

Applications:

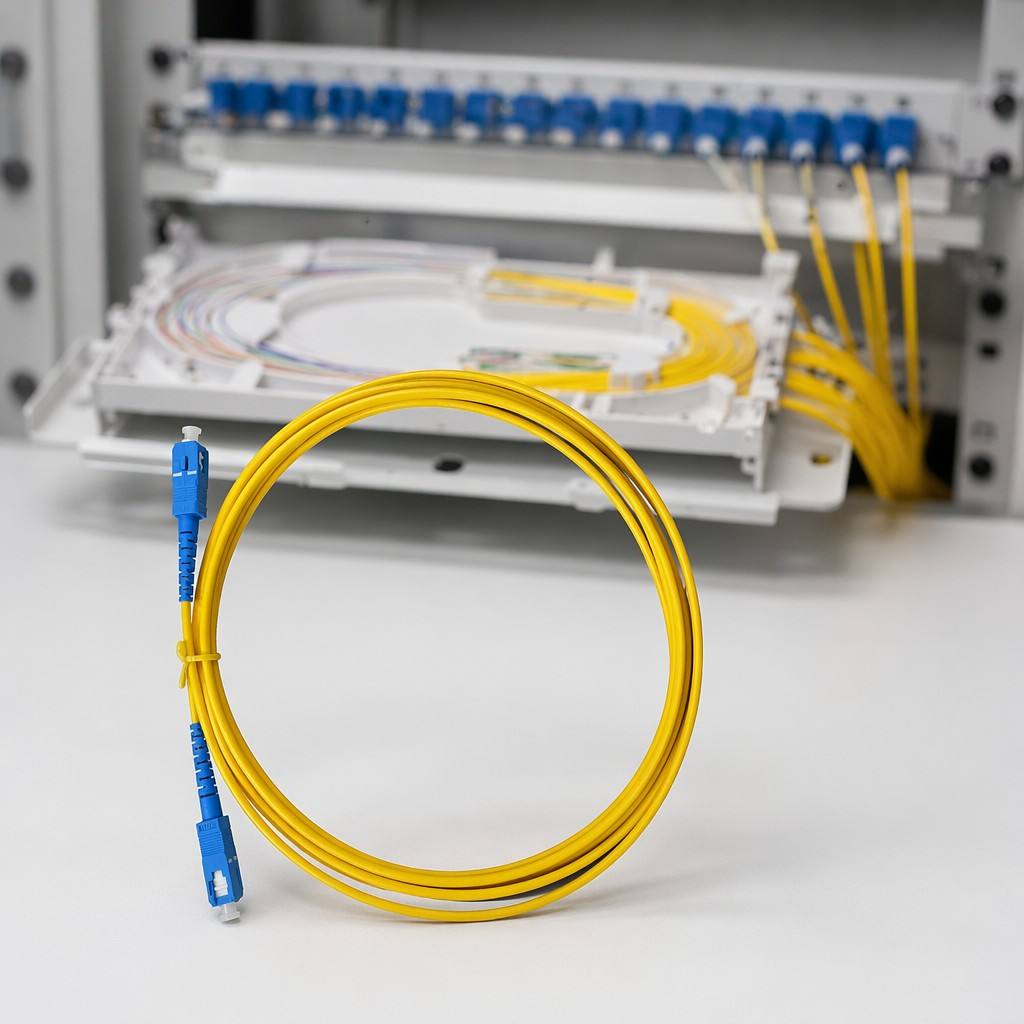

FTTH / FTTX Networks (last-mile fiber access, ODF cross-connections)
Data Centers (high-density fiber patching, backbone interconnections)
Telecom Infrastructure (CATV, base station backhaul, metro/long-haul links)
OEM & ODM Customization:
Custom lengths: 0.5m / 1m / 2m / 3m / 5m / 10m / 20m / 50m or any specified length
Custom connector types: SC/APC, LC/UPC, LC/APC, FC, ST available
Custom cable colors, jacket materials, packaging options
Custom branding, labeling, and private label (LESOZOH or your brand)
